VARTA emergency power box
Dimensions (H x W x D)
260 x 225 x 175 mm
Weight
3.550 g
* According to compatibility list
Compatibility
VARTA element backup
* According to compatibility list
Environmental category
Interiors
*According to compatibility list
Protection class
IP44
** Not for permanent off-grid operation. Check starting currents and loads!
Output voltage / output frequency
230 V~ / 50 Hz
Degree of soiling
3
Ambient temperature
+5° to 30°C
Max. Altitude
2,000 mm
Circuit breaker
6 A Type B
Fault protection switch
Type B I in 30 mA
Sockets
3x Schuko (DE + AT), 3x type 13 (CH)

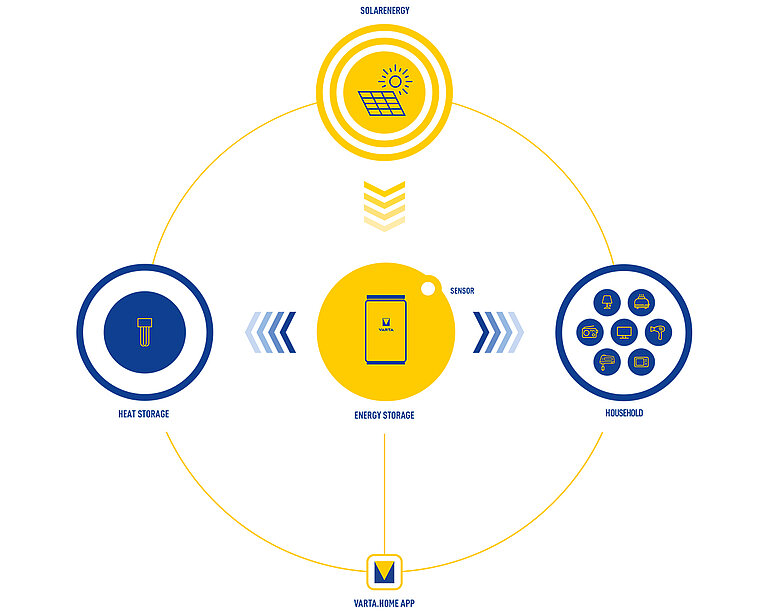

Networkability in the smart home
By allocating energy efficiently, you can maximise the self-consumption rate and reduce energy costs. Integration into existing networks is also possible.
- Current sensor
- "Current measurement" connection socket
- Folding transformer (L1, L2, L3)

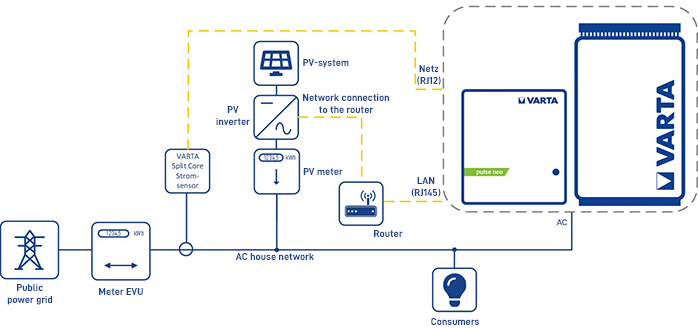

Quick and easy installation
For self-consumption optimisation, install the current sensor directly behind the reference and feed-in meters
House no longer needs to be additionally disconnected
Space-saving and also suitable for narrow junction boxes
Load capacity of 100 A per phase
Connection to cables up to 12 mm thick

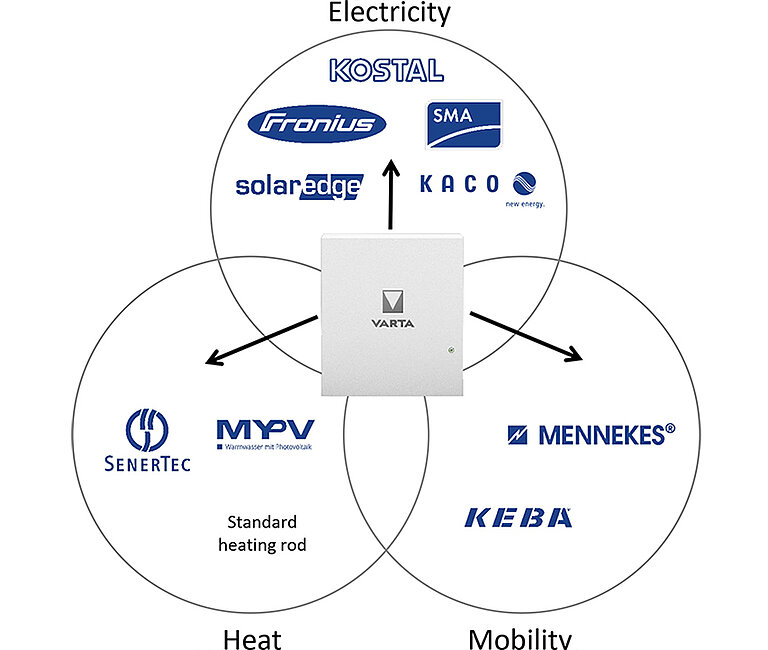

Sector coupling
Sector coupling refers to the networking of the home in order to use self-generated electricity for the heat pump and for the charging station of the electric car.
Sector coupling allows you to switch not only the electricity sector, but also the heating and transport sectors more strongly to renewable energies, making the energy transition a success in the long term.
With MyPV, for example, surplus electricity can be used to operate the heat pump.
Direct charging station interaction with the VARTA pulse neo
The open operating system of the VARTA pulse neo provides more flexibility and can communicate directly with selected intelligent charging stations.
These include:
- Mennekes (Amtron Xtra or Premium)
- KEBA (KeContact P30 c- or x-series)
This ensures fast and efficient charging of the electric car with green solar energy:
- Charging with PV surplus
- Home storage-supported charging
- Free charging, independent of PV and storage capacity
